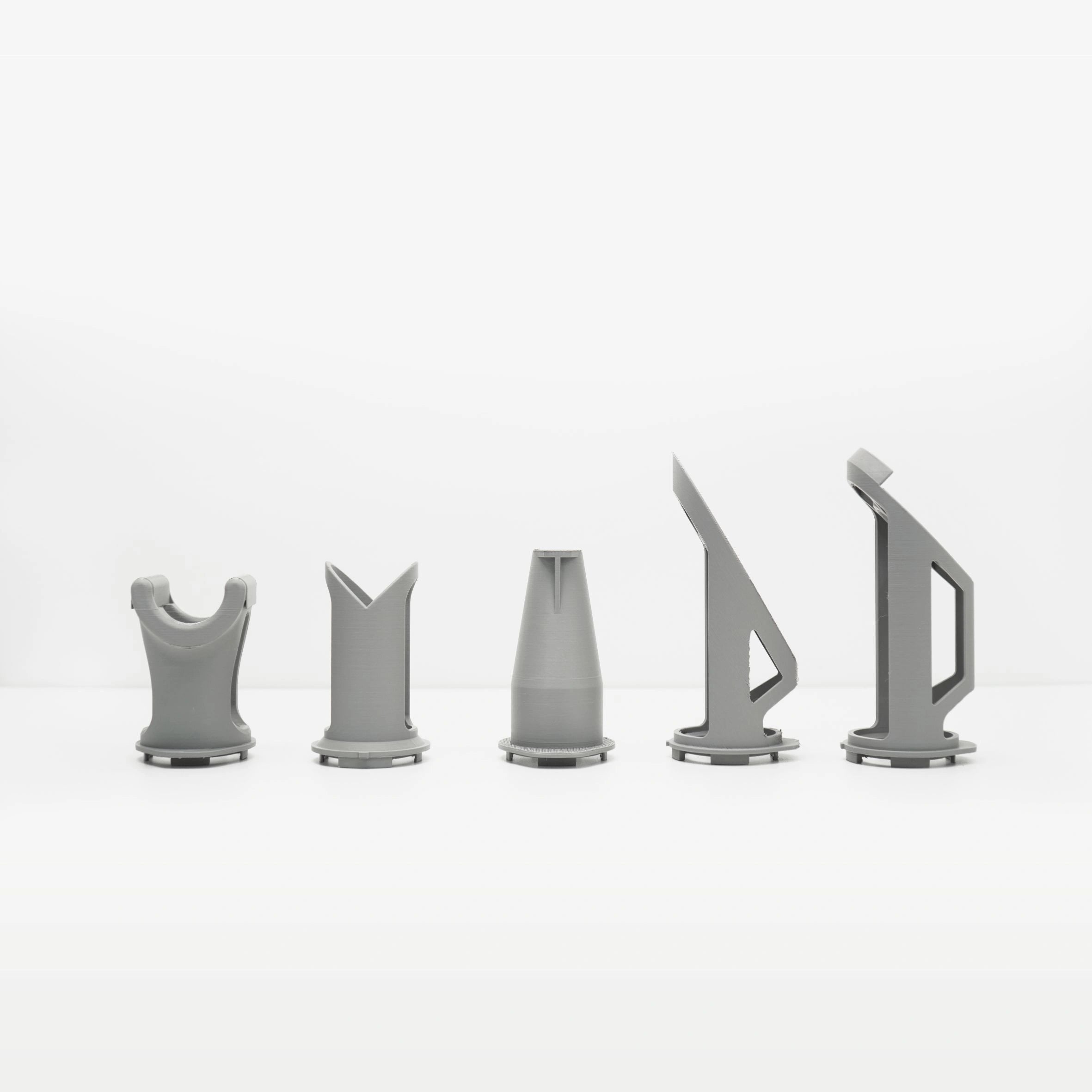

SPESYN printable guide heads

Print The Right Guide for Your Job

Expand the capabilities of your ST3 with downloadable and customizable guide heads.

MODULE POSITIONING

One Interface. More Ways to Work.

The FGM interface gives ST3 a modular, quick-change guide system for specialized drilling tasks. Different guide heads can provide fixed-angle positioning, stable vertical drilling on flat or curved surfaces, depth-control assistance, and dust collection.



Users can choose official FGM guides or 3D print custom attachments for unique applications. As new guide designs are developed, the same interface continues to expand the capabilities of ST3—without requiring a separate tool for every task.

How It Woks

Choose a Guide

Download the File

Print It

Install and Use

Front Guide Module Library

Explore official Front Guide Module files or submit a request for a guide designed around your application.

All Official Guides

Download STEP or STL files for the current Front Guide Module collection.

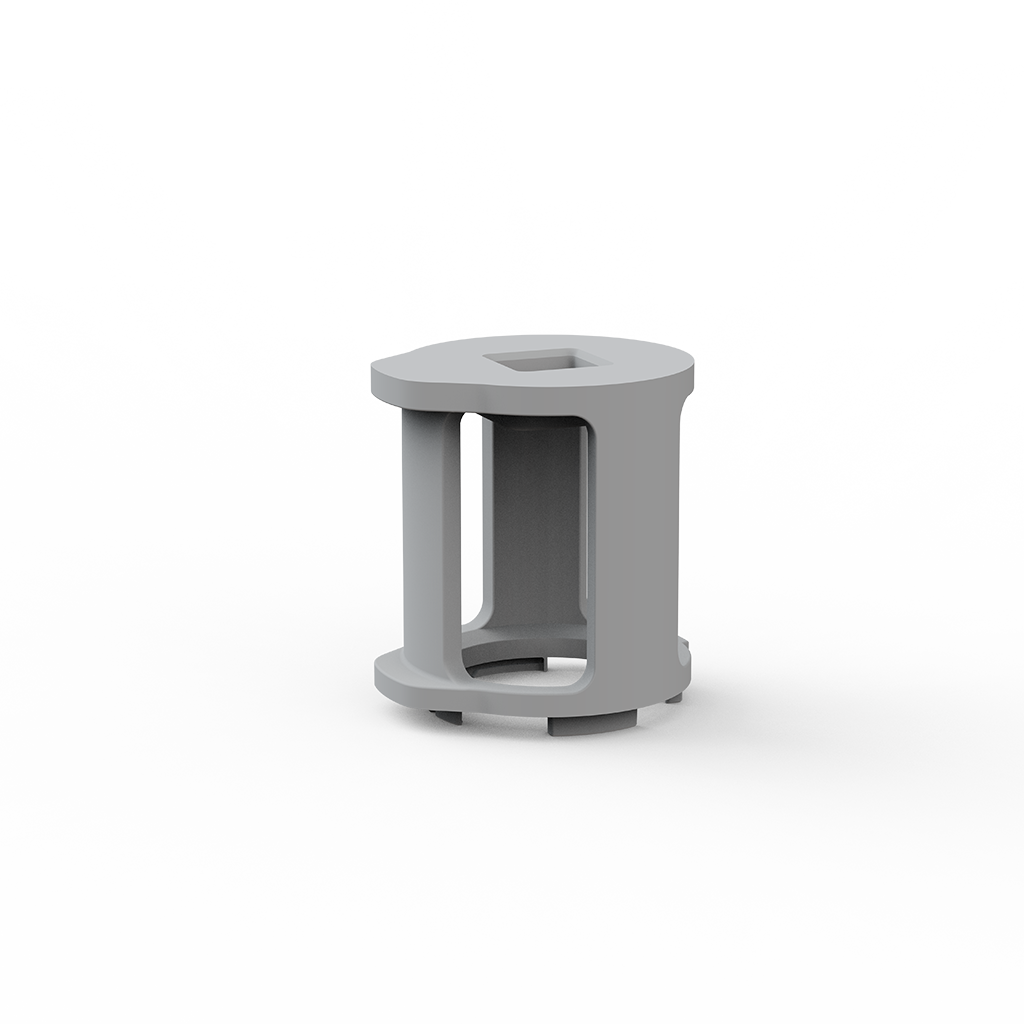

Profile Center Guide 20×20 Official

Profile Center Guide 20×20

FGM-PC20

Centers drilling positions on 20×20 mm profiles.

20×20 Square Profiles

Height
60 mm
  • Profile
  • Center Drilling

0 Downloads

Download STEP Download STL

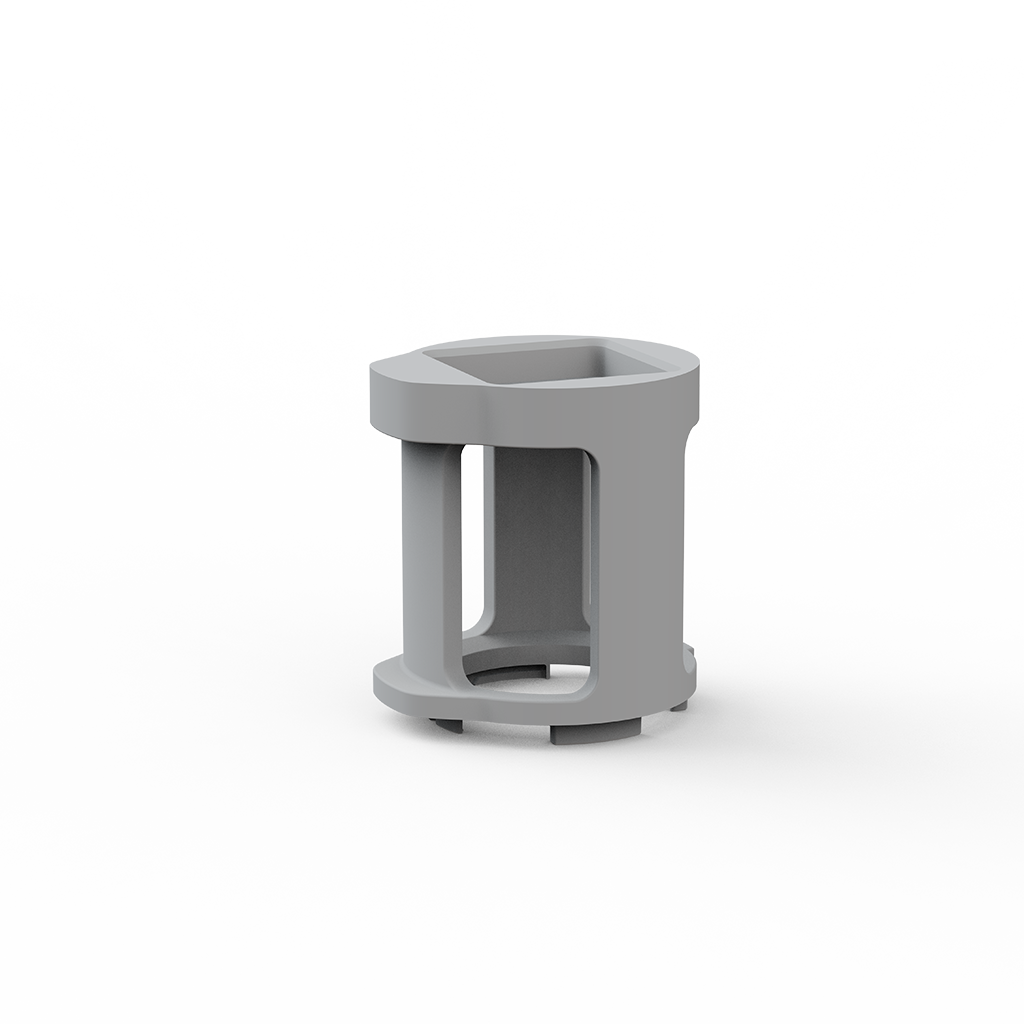

Profile Center Guide 40×40 Official

Profile Center Guide 40×40

FGM-PC40

Centers drilling positions on 40×40 mm profiles.

40×40 Square Profiles

Height
60 mm
  • Profile
  • Center Drilling

0 Downloads

Download STEP Download STL

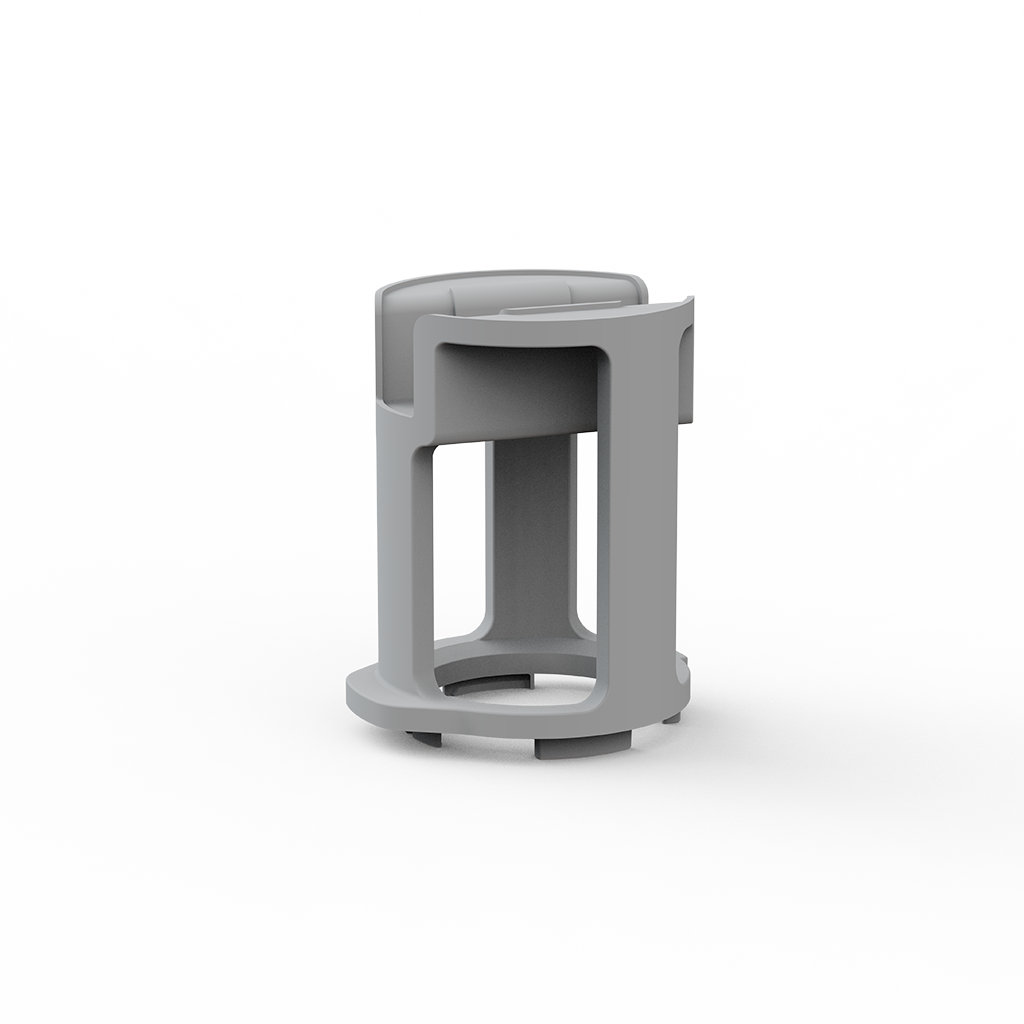

Profile Side Guide 20×20 Official

Profile Side Guide 20×20

FGM-PS20

Positions holes accurately on the side of 20×20 mm profiles.

20×20 Square Profiles

Height
58 mm
  • Profile
  • Side Drilling

0 Downloads

Download STEP Download STL

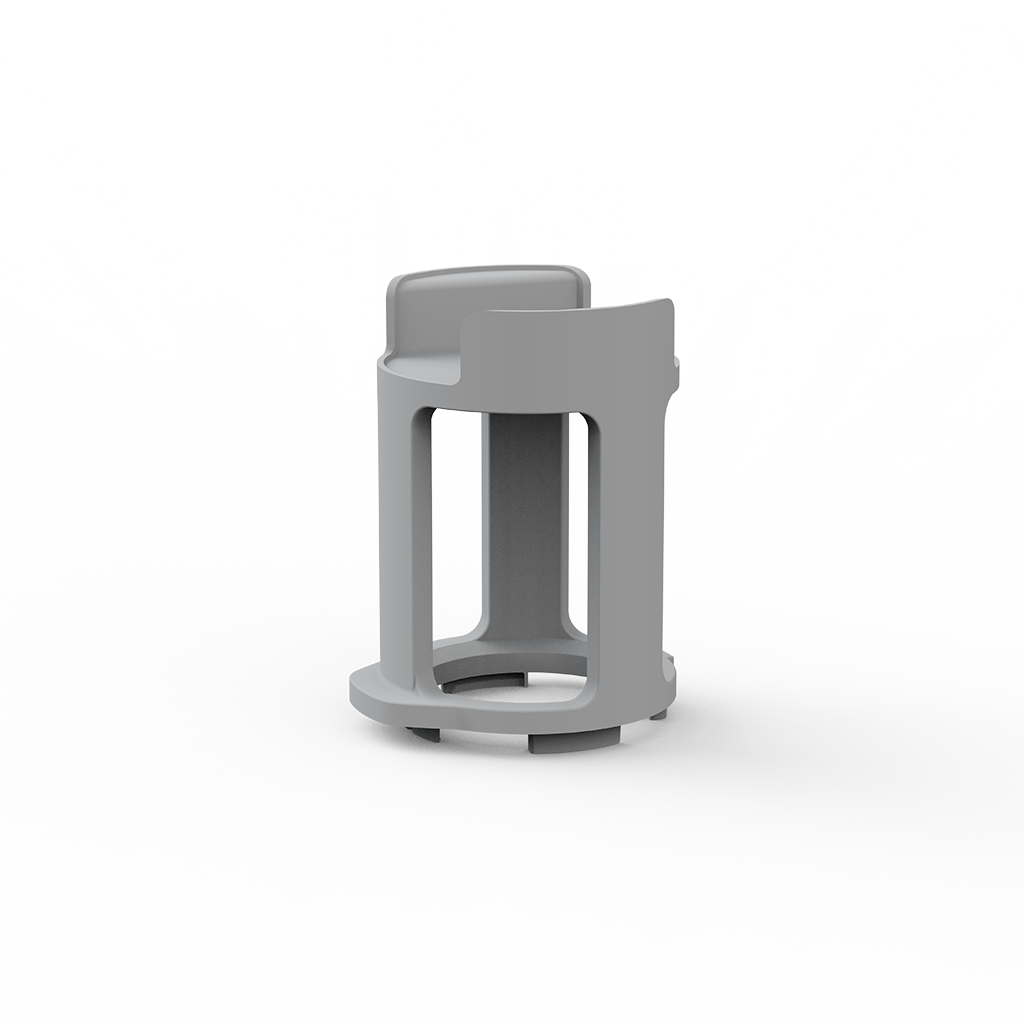

Profile Side Guide 40×40 Official

Profile Side Guide 40×40

FGM-PS40

Positions holes accurately on the side of 40×40 mm profiles.

40×40 Square Profiles

Height
69 mm
  • Profile
  • Side Drilling

0 Downloads

Download STEP Download STL

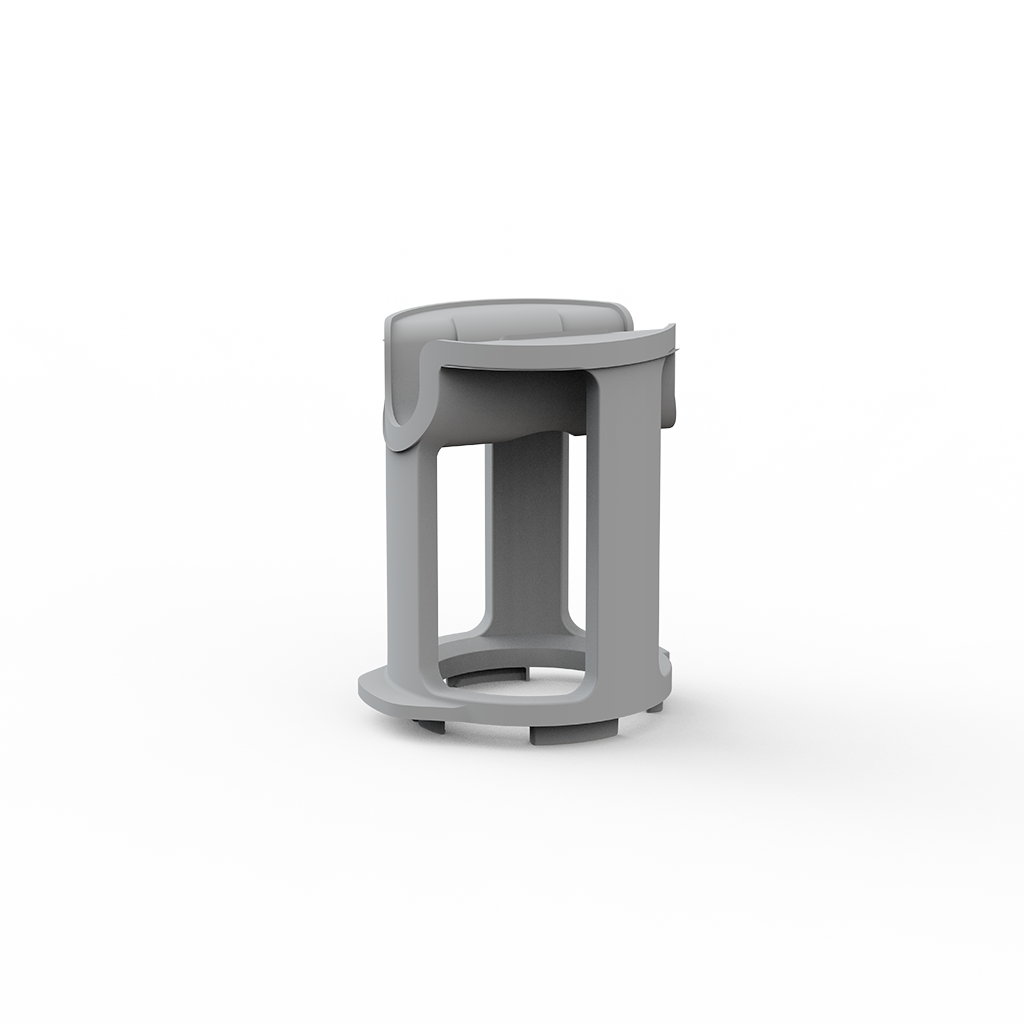

Tube Side Guide 20 Official

Tube Side Guide 20

FGM-TS20

Positions side holes accurately on 20 mm round tubes.

20 mm Round Tubes

Height
69 mm
  • Round Tube
  • Side Drilling

0 Downloads

Download STEP Download STL

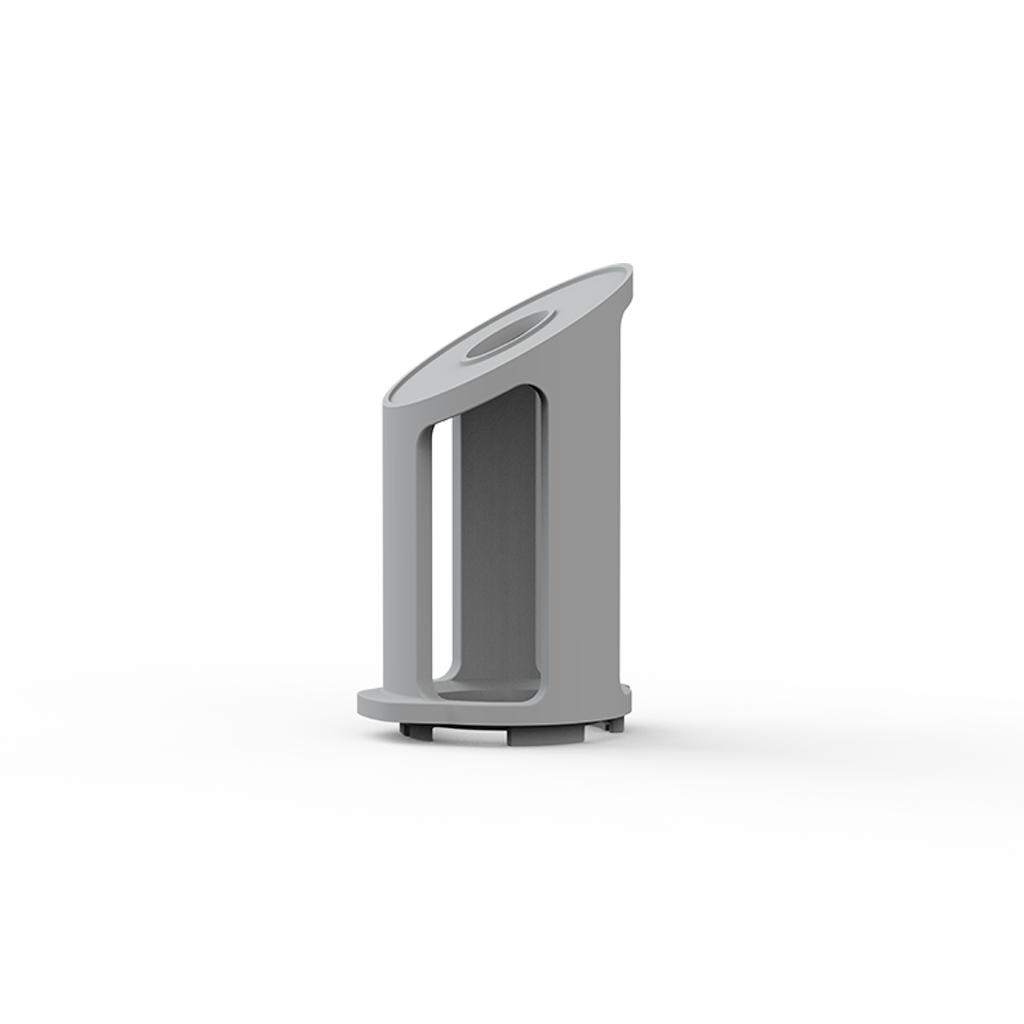

Angle Guide 60° Official

Angle Guide 60°

FGM-A60-L

Supports repeatable drilling at a fixed 60-degree angle.

Angled drilling

Height
91 mm
  • Angle
  • Angled drilling

0 Downloads

Download STEP Download STL

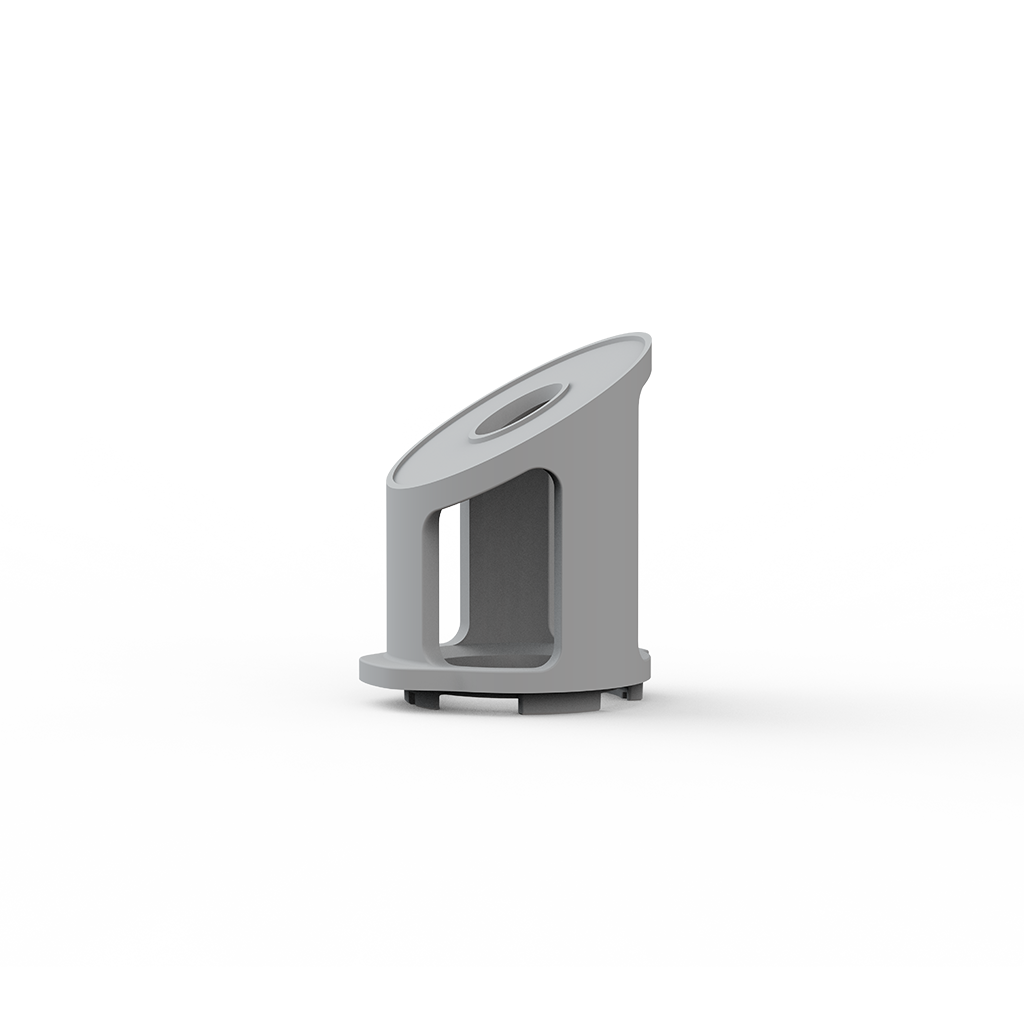

Angle Guide 60° Official

Angle Guide 60°

FGM-A60-S

Supports repeatable drilling at a fixed 60-degree angle.

Angled drilling

Height
61 mm
  • Angle
  • Angled drilling

0 Downloads

Download STEP Download STL

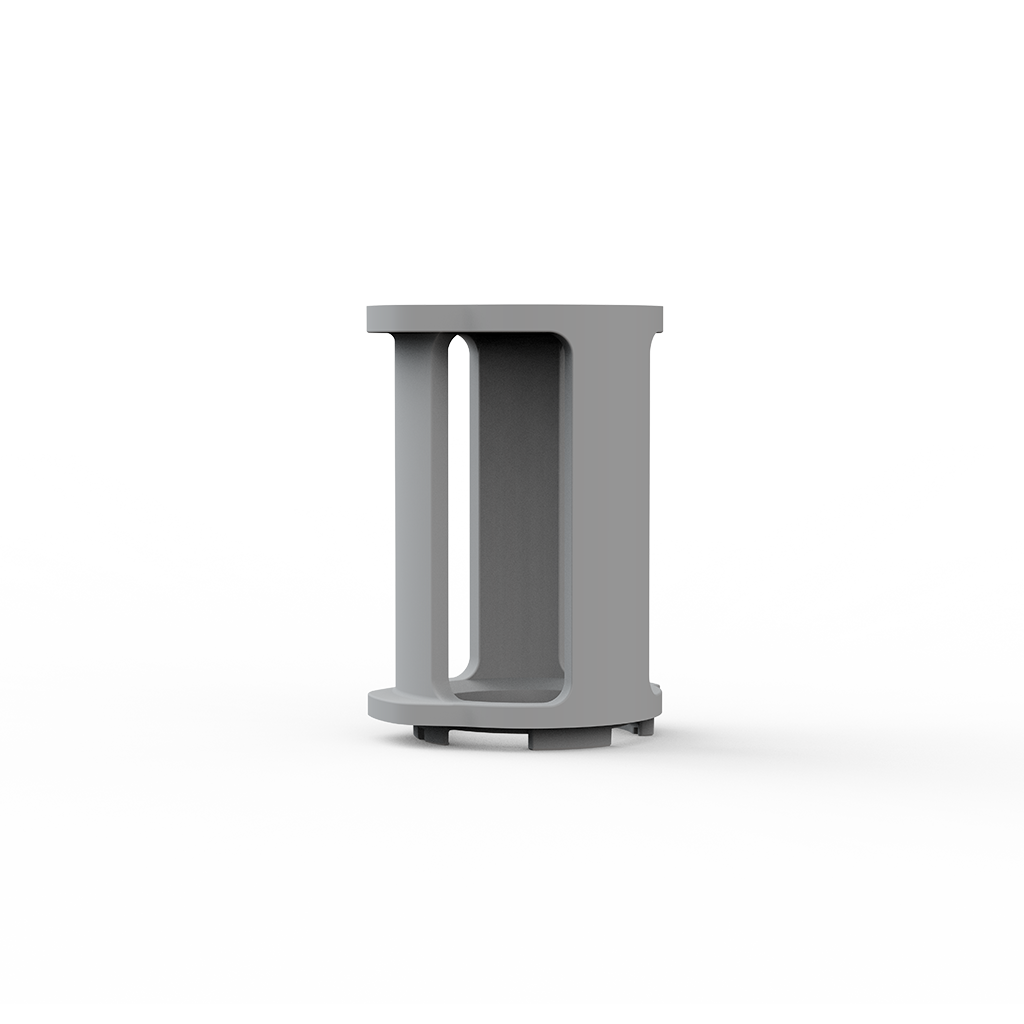

Angle Guide 90° Official

Angle Guide 90°

FGM-A90-L

Supports repeatable drilling at a fixed 90-degree angle.

Surface drilling

Height
92 mm
  • Surface
  • Positioning

0 Downloads

Download STEP Download STL

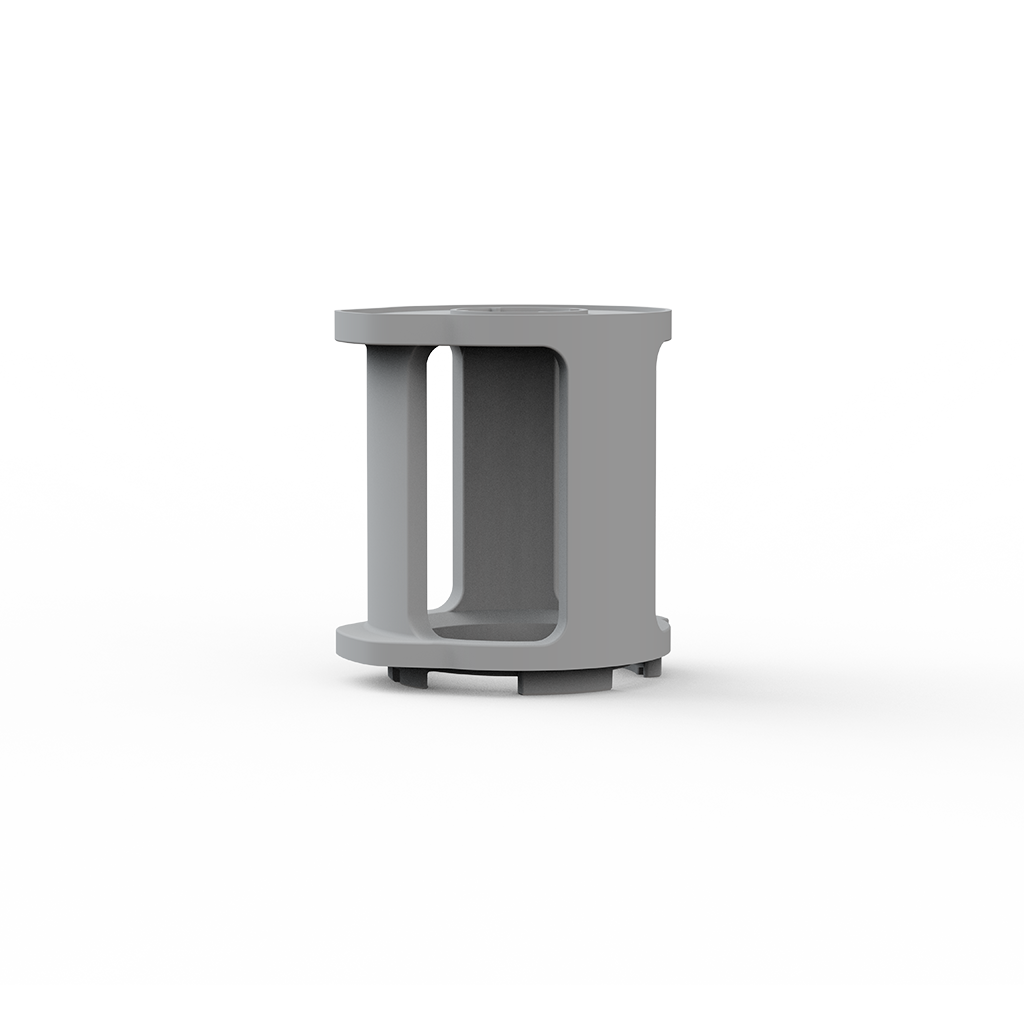

Angle Guide 90° Official

Angle Guide 90°

FGM-A90-M

Supports repeatable drilling at a fixed 90-degree angle.

Surface drilling

Height
68 mm
  • Surface
  • Positioning

0 Downloads

Download STEP Download STL

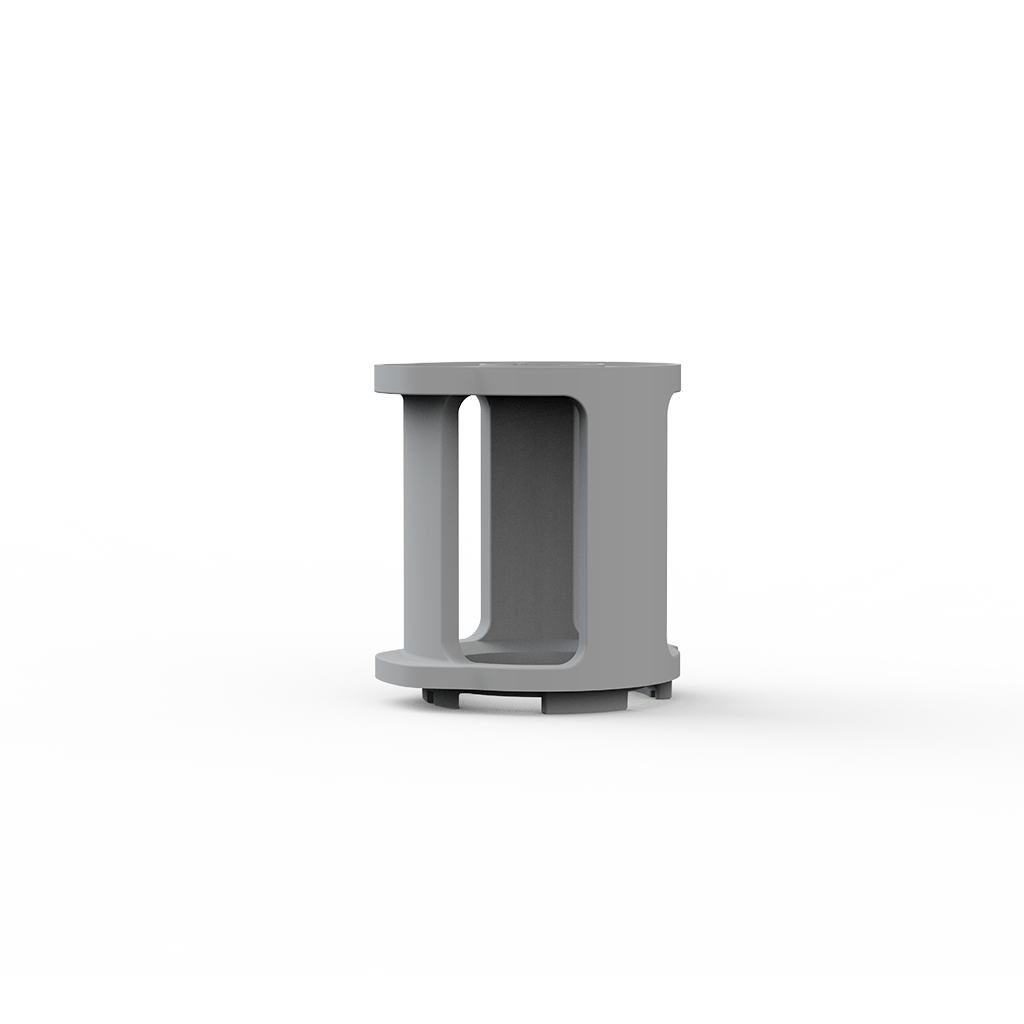

Angle Guide 90° Official

Angle Guide 90°

FGM-A90-S

Supports repeatable drilling at a fixed 90-degree angle.

Surface drilling

Height
58 mm
  • Surface
  • Positioning

0 Downloads

Download STEP Download STL

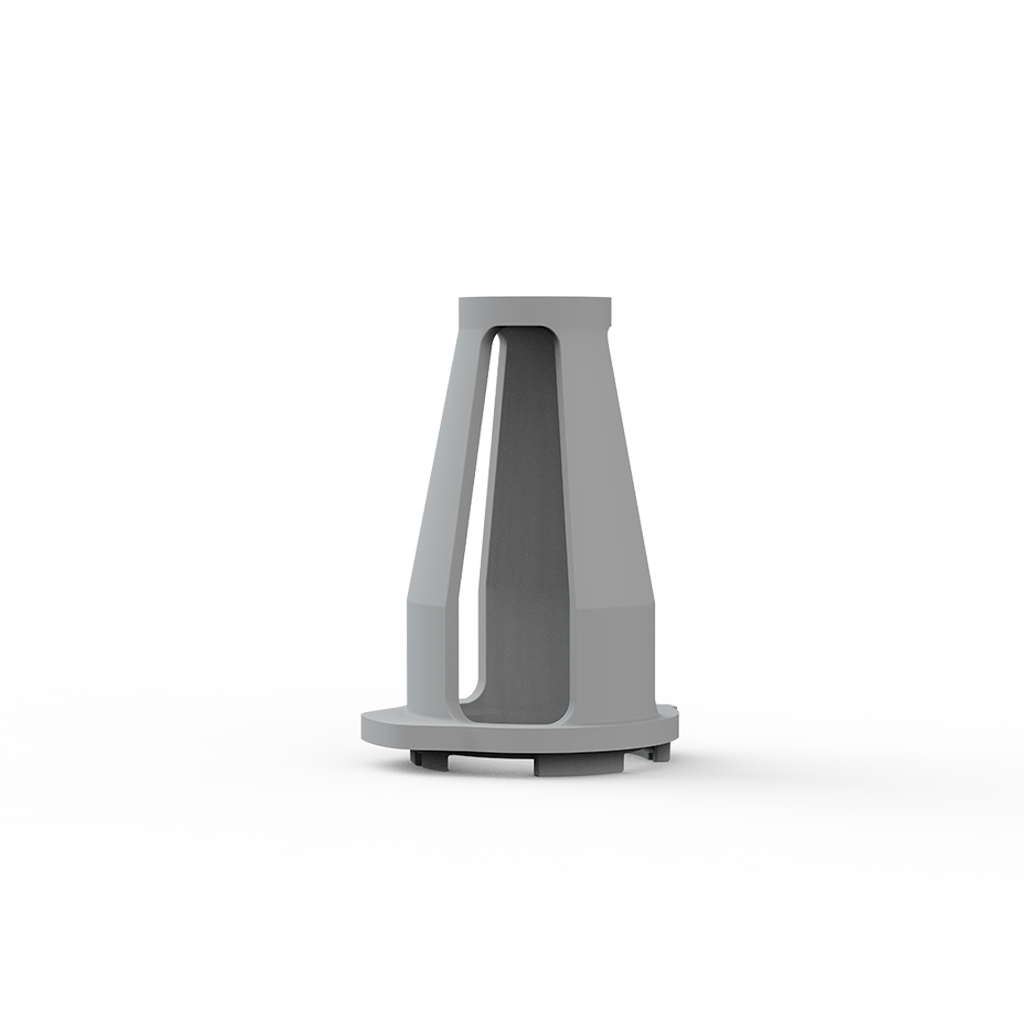

Compact Guide Official

Compact Guide

FGM-V1

A narrow-footprint guide for accurate drilling in tight spaces.

Corners and Narrow Gaps

Height
92 mm
Fits Ø
32 mm
  • Tight Spaces
  • Narrow Footprint

0 Downloads

Download STEP Download STL

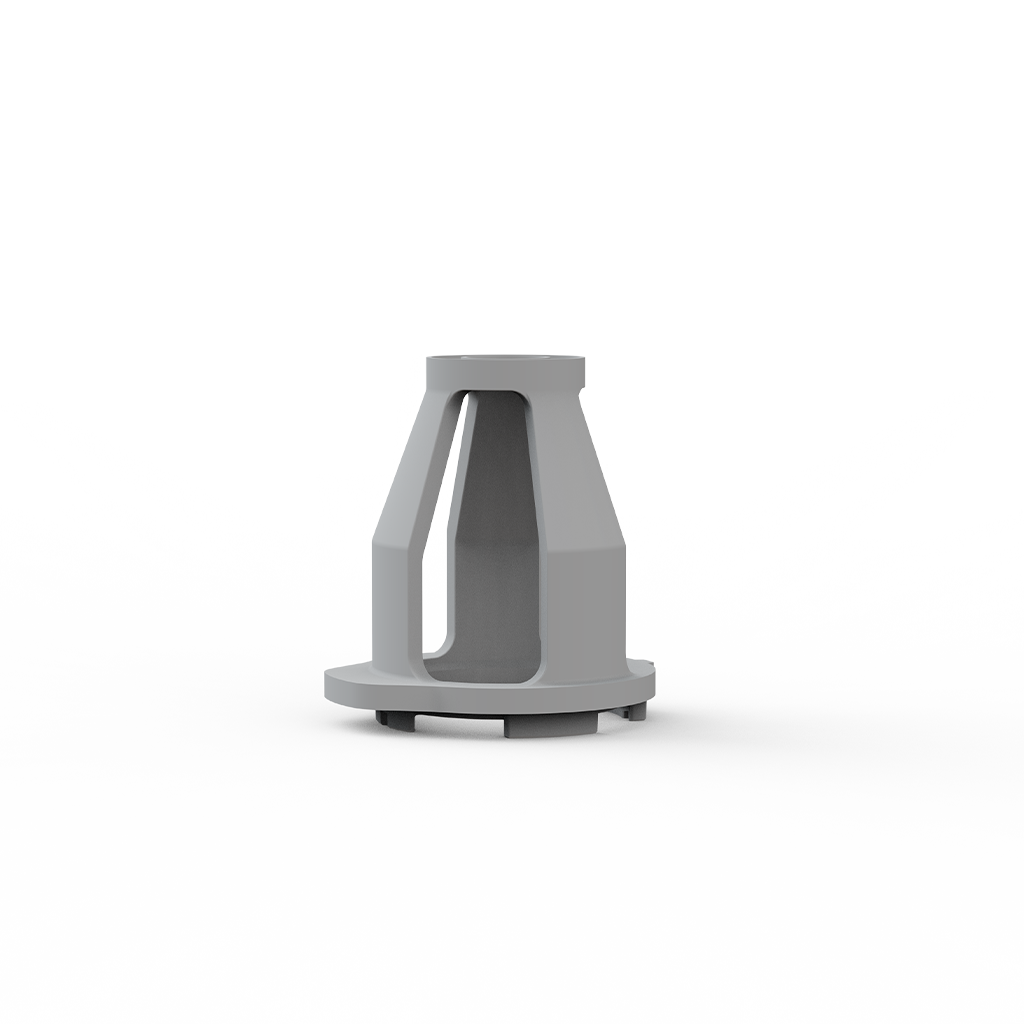

Compact Guide Official

Compact Guide

FGM-V2

A narrow-footprint guide for accurate drilling in tight spaces.

Corners and Narrow Gaps

Height
68 mm
Fits Ø
32 mm
  • Low Clearance
  • Confined Spaces

0 Downloads

Download STEP Download STL

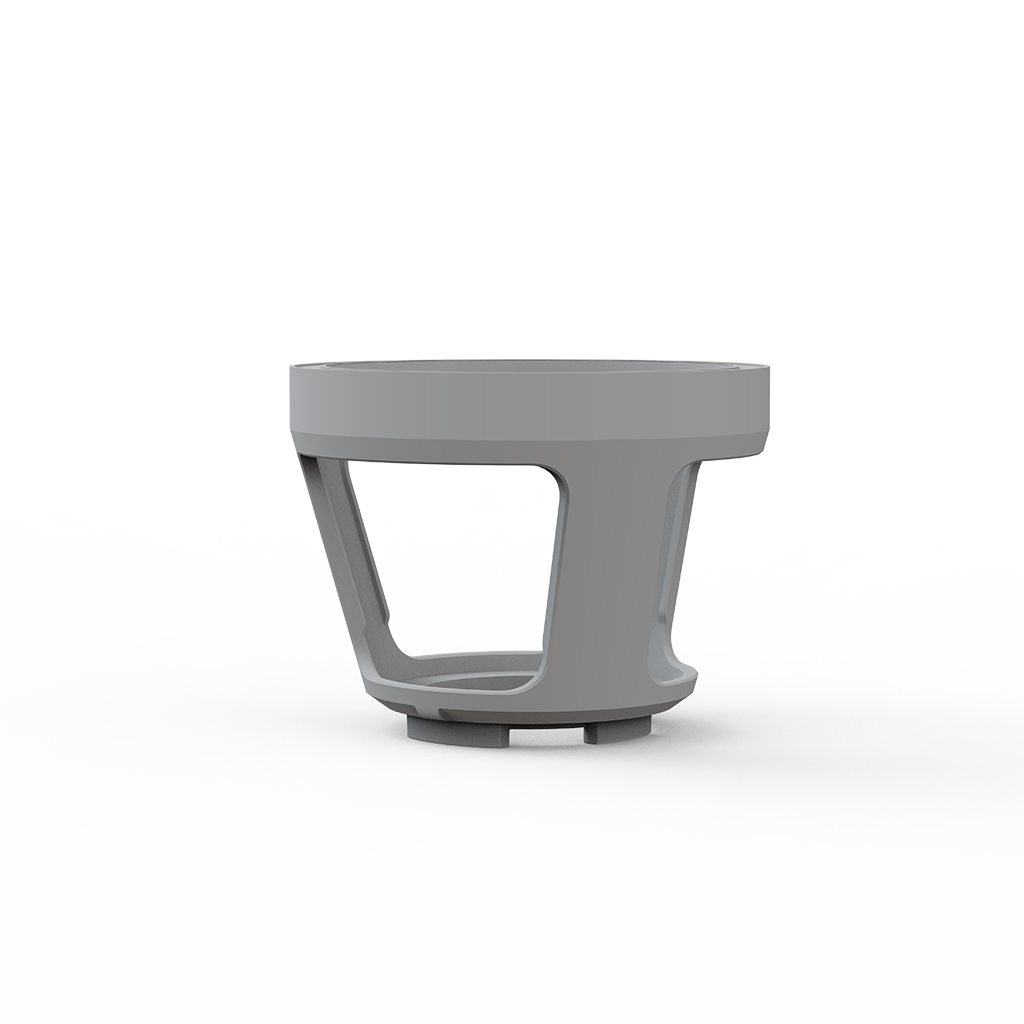

Wide-Base Guide Official

Wide-Base Guide

FGM-W1

A wider support base for enhanced stability on flat surfaces.

Large Flat Surfaces

Height
71 mm
Outer Ø
100 mm
  • Flat Surfaces
  • Enhanced Stability

0 Downloads

Download STEP Download STL

Where to Print

No 3D printer? Use the options below to turn your FGM file into a ready-to-use guide.

Streamlined CNC Machining
and 3D Printing Service

LEARN MORE

Frequently Asked Questions

Is this an attachment for most drills?

The FGM of ST3 is more than just a drill guide attachment. Its unique telescopic structure works together with the guide head to enable accurate real-time depth measurement and control, which wouldn’t be possible as a simple add-on for standard drills. It provides mechanical constraint to keep the tool aligned, while the dual steel guide rails control the feed motion. Combined with real-time depth sensing and the integrated Drill + Tap + Drive workflow, ST3 is designed as a complete handheld system rather than just an add-on accessory.

Can I design the FGM by myself?

Yes. SPESYN Tool 3 is designed to be open and practical — many early users are already planning custom 3D-printed guides and accessories for specific angles or setups.

Only 90° once the guard becomes flush ? Or is the guard spring loaded ?

The 90° alignment is primarily achieved when the front guide module is fully flush with the surface.

But it also has an internal spring mechanism that provides a bit of assisted adjustment, helping ensure stable contact and alignment even on slightly uneven surfaces.

What is the guide made of?

The Front Guide Module (FGM) is made from durable PC (polycarbonate), chosen for its strength and impact resistance. For custom 3D-printed guide heads, the material depends on the filament you choose. We generally recommend ABS, PLA, or PETG, depending on your application and printing setup.

What are the recommended 3D printing settings for FGM guides?

Support structures are required when printing FGM guides. For the recommended print orientation, place the model with the mounting interface facing down toward the build plate, as shown in the reference image.

Recommended slicer settings:

• Layer height: 0.2 mm
• Infill density: 70%
• Wall thickness: Use the default setting
• Supports: Standard or tree supports

Settings may be adjusted slightly depending on your printer, filament, and slicer.
