How to Charge the Cordless Drill: A Complete Battery Guide

  • By Sam

Published: Friday, July 23, 2026

How to charge the cordless drill? Start by checking the battery type, voltage, charging port, and charger specifications. Remove the battery if the manufacturer recommends it, connect it to an approved charger, place it on a dry and ventilated surface, and wait until the charging indicator shows that the cycle is complete. Never assume that two chargers are compatible simply because their plugs fit.



Most modern cordless drills use lithium-ion batteries, but their charging systems are not all the same. Some require a proprietary charging dock, while newer tools such as the SPESYN ST3 support convenient USB-C fast charging. Understanding these differences helps you charge more safely, reduce downtime, and extend battery life.

Quick Answer: How Do You Charge a Cordless Drill Battery?

For most cordless drills, follow these steps:

  • Switch off the drill and release the trigger.
  • Remove the battery from the tool if the manufacturer’s instructions require it.
  • Inspect the battery, charging port, cable, and charger for visible damage.
  • Allow a hot battery to cool to room temperature.
  • Connect the battery to the manufacturer-approved charger or a compatible USB-C PD charger.
  • Place the battery on a hard, dry, nonflammable and well-ventilated surface.
  • Check the indicator light or battery display.
  • Disconnect the charger when charging is complete.
  • Reinstall the battery and test the drill at low speed.

The exact procedure varies by model. Always follow the instructions supplied with your drill and battery.

Can You Charge a Drill Battery with a Phone Charger?

Sometimes—but only when the drill battery supports USB-C charging and the phone charger provides a compatible charging protocol and power level.



A conventional drill battery designed for a proprietary dock cannot be charged safely by connecting wires or adapting a phone charger. The battery’s voltage, charging control and protection requirements are different. Never build an improvised charging adapter for a lithium-ion power-tool battery.



For a drill designed around USB-C charging, a compatible USB-C PD phone or laptop charger may work. However, three things must match:

1. The Battery Must Support USB-C Charging



A USB-C charger cannot be used simply because the tool has a port that looks similar. Confirm that the battery or manufacturer specifically supports charging through that port.



2. The Charger Must Support the Required Protocol



Modern USB-C PD chargers negotiate power with the connected device. This allows the battery to request an appropriate power profile instead of receiving uncontrolled power.

Older USB-A phone chargers and basic low-wattage USB-C adapters may not support the required PD profile. They may charge very slowly or may not initiate charging at all.



3. The Cable Must Handle the Required Power



Charging performance depends on the entire chain:

Wall outlet → power adapter → USB-C cable → battery charging system



A high-power charger paired with a low-rated or damaged cable may not achieve its advertised charging speed. Use a reliable cable rated for the required wattage.

Will a Low-Wattage Phone Charger Damage the Battery?

A correctly designed USB-C PD system normally negotiates a supported power level before fast charging begins. A lower-wattage compatible charger will generally result in slower charging rather than forcing excessive power into the battery.



However, “USB-C” does not automatically mean “compatible.” Poor-quality, damaged or noncompliant chargers and cables can create charging problems. The safest choice is always the charger and cable recommended by the tool manufacturer.



If a battery does not begin charging, repeatedly disconnecting it or trying random adapters is not a solution. Check the specifications first.

How Long Does It Take a Cordless Drill Battery to Charge?

A cordless drill battery may take anywhere from around 30 minutes to several hours to charge. The actual time depends on:



  • Battery capacity
  • Charger output
  • Battery temperature
  • Starting charge level
  • Charging protocol
  • Battery age and condition
  • Whether the charger reduces power near full capacity

A basic estimate can be calculated as:

Charging time ≈ battery energy ÷ effective charging power



Battery energy in watt-hours can be estimated using:

Watt-hours = battery voltage × amp-hour capacity



This is only a rough calculation. Real charging takes longer because of energy losses, thermal management and the slower final stage used as the battery approaches full charge.

Typical Charging-Time RangesFrom Drill to Tap to Drive

Typical Cordless Drill Battery Charging Times

Charging System Typical Charging Time
Basic Low-Output Charger Approximately 2–5 hours
Standard Power-Tool Charger Approximately 1–2 hours
Fast Proprietary Charger Approximately 30–60 minutes
Compatible High-Power USB-C PD Charger Often approximately 45–90 minutes, depending on the battery
Low-Wattage Phone Charger May take several hours or may not charge

Note: These charging times are general estimates rather than universal specifications. Actual results depend on battery capacity, remaining charge, temperature, charger output, cable rating and charging protocol.

Why Does Charging Slow Down Near 100%?

Lithium-ion charging is not perfectly linear. The charger may deliver higher power during the main part of the cycle and then reduce the current as the battery approaches full capacity.



That is why a manufacturer may advertise a relatively short time from 20% to 80%, while the final 20% takes longer. This controlled reduction helps manage temperature and protect the cells.



For many jobs, restoring enough power to continue working is more valuable than waiting for a completely full battery.

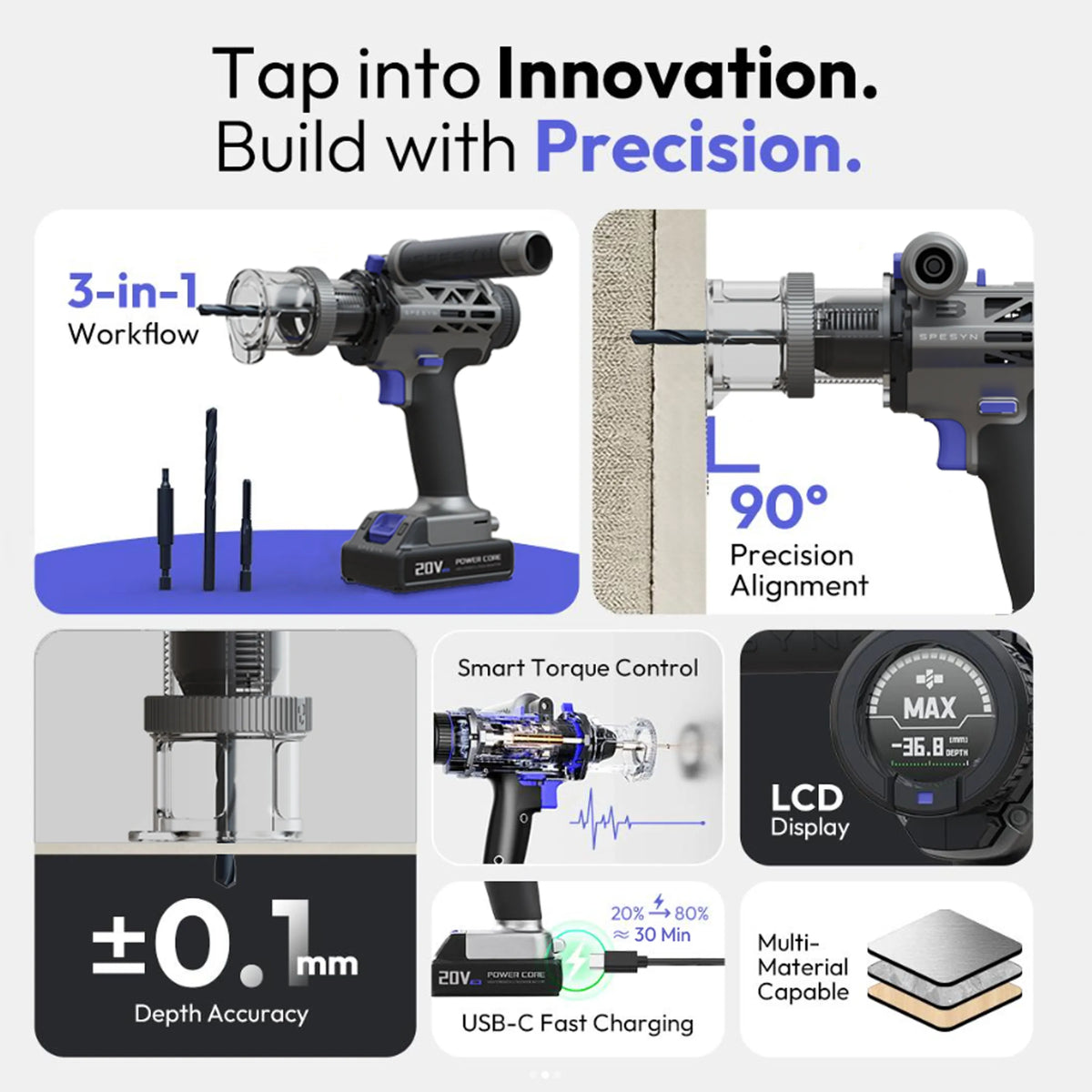

How the SPESYN ST3 Improves the Charging Workflow

The SPESYN ST3 is designed for drilling, tapping and screwdriving in workshops, installation sites and field projects. Its power system follows the same portable-workflow philosophy.

USB-C Fast Charging



Instead of depending entirely on a bulky proprietary charging dock, the ST3 battery supports USB-C fast charging. With a compatible USB-C PD charger and cable, users can recharge from power sources already common in modern work environments.



This can make the system easier to carry between a workshop, vehicle and jobsite. It also reduces the number of single-purpose charging accessories that need to be packed.

The ST3 supports a 45W standard charging setup, while a compatible 65W fast-charging option can replenish approximately 20% to 80% in about 30 minutes under suitable conditions. Actual charging time may vary with battery temperature, initial charge level, charger, cable and operating environment.



Removable 2.5Ah Battery



The ST3 uses a removable 2.5Ah battery rather than permanently sealing the power source inside the tool.



When one battery becomes low, the user can stop the tool, replace it with a charged spare and continue working while the depleted battery recharges. This does not make the battery change literally instantaneous, but it can reduce downtime to the short period needed to swap packs.



For longer workshop sessions, a practical rotation is:

  • Battery A powers the tool.
  • Battery B charges through USB-C.
  • Swap the batteries when Battery A runs low.
  • Recharge Battery A while Battery B is in use.

This approach supports a near-continuous workflow without tying the drill to a power cord.

Runtime Designed for Real Tasks



According to SPESYN’s product testing, the ST3 provides approximately 52 minutes of continuous no-load runtime. In a separate controlled drilling test, one full charge completed more than 400 holes using a 6mm drill bit in a 40mm wood board.



Real runtime will vary based on material, drill-bit diameter, drilling depth, torque, speed, tapping load and operator technique. A large bit in steel will consume more power than a small bit in softwood.



The important advantage is not one universal runtime number. It is the combination of useful capacity, fast USB-C recharging and a replaceable battery architecture.
